[Nord] Piano 2 노드 피아노 2 Manual (영문 매뉴얼)



Nord Piano 2

(2012)



노드 피아노 2 매뉴얼





Nord piano 2 스펙





Global

•
• LCD Display
• 2 banks with 24 pages each, 5 programs - 240 locations
• Live Mode - 5 Live programs
• Global Transpose: +/- 6 semitones
• Program Transpose: +/- 6 semitones

• Fine-tune: +/- 50 Cents
• Kbd Touch: 4 velocity response curves
• Split functionality with selectable split point
• Layer functionality

• Mono Output option
• Dynamic Sustain Pedal action with the included Nord Triple Pedal
• USB-MIDI
•

Piano section

• 6 types - Grand, Upright, Electric Piano 1, Electric Piano 2, Clavinet and Harpsichord.
• Each category can contain up to 9 different models.
• 40/60 Voices Polyphony (stereo/mono pianos)

• Advanced String Resonance (Generation 2) - adjustable amount
• Selectable Long Release for Grand, Upright, Electric Pianos and Harpsichord

• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount
• Octave Transpose: -1/+1



Sample Synth Section



• Up to 99 sample instruments
• 16 Voices Polyphony
• Attack and Release controls

• Octave Transpose: -1/+3
• Volume controllable with Volume Pedal (not included)

• Sustenuto pedal can be set as sustain or gate pedal for the Sample Synth section.



Memory



• Approx. 500 MB dedicated to the Nord Piano Library

• Approx. 128 MB dedicated to the Nord Sample Library

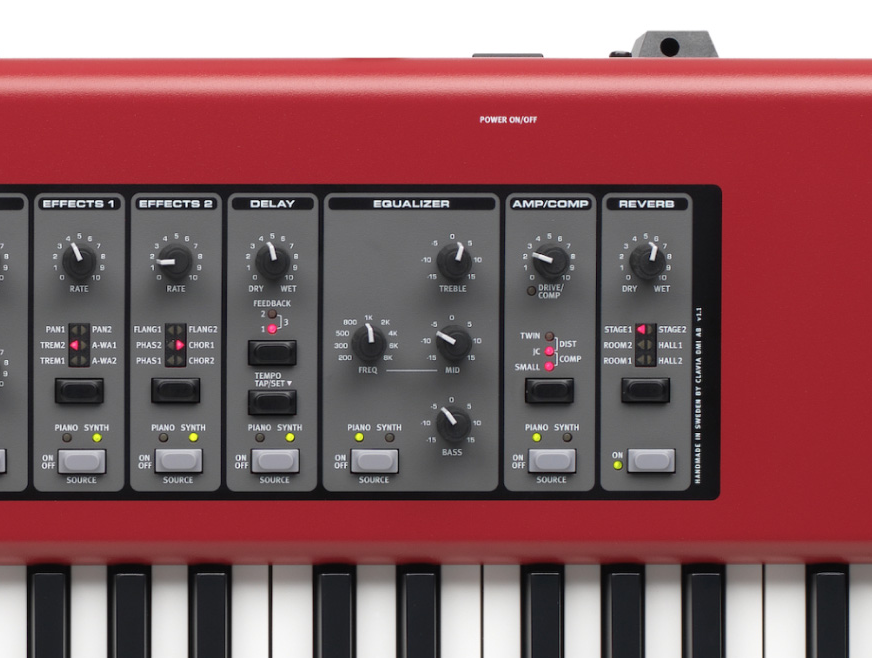

Effect Section



• Effect 1 - Pan, Tremolo, Stereo Auto-wah. Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
• Effect 2 - Stereo Phaser, Flanger and Chorus. Three selectable depths, rate controlled with the Effect 2 Rate knob
• Delay - Four levels of feedback amount, Dry/Wet adjustment. Tempo can be set manually or with Tap Tempo button. Range: 20 ms ~ 750 ms

• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation (100 Hz, 4 kHz and 200 Hz ~ 8 kHz)
• Comp/Amp - Twin, JC, Small (mono), Tube distortion (stereo) and compressor (stereo). Drive/compression amount controlled with the Drive knob.

• Reverb with six algorithms - Room 1 & 2, Stage 1 & 2, Hall 1 & 2, Dry/Wet control
• Each effect can be assigned to either Piano or Sample Synth section

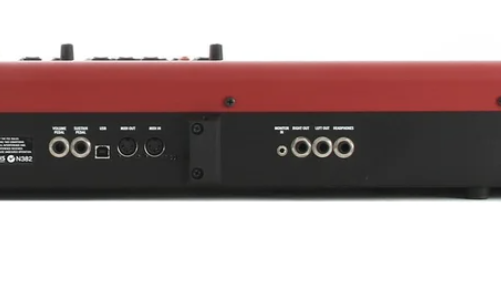

Connections



• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Piano pedal input - ¼", 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc

• 1 Volume Pedal input - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB-MIDI
• IEC C14 power connector

Dimensions

• HA88 : 1287 mm (50.7"), 121 mm (4.8"), 340 mm (13.4")
• HP: 1066 mm (42") x 121 mm (4.7") x 340 mm (12")

Weight

• HA88: 18,3 kg (40.3 lbs)
• HP: 11 kg (24.25 lbs)
•

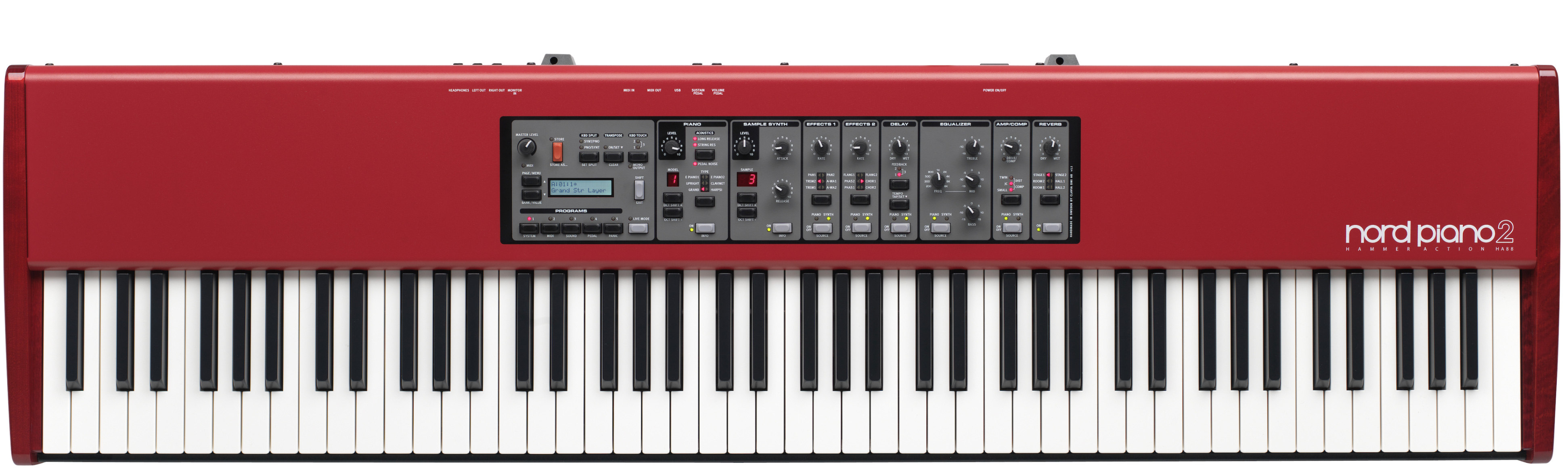

Nord piano 2 상세이미지































































Nord piano 2 매뉴얼











1Nord Piano 2 English User Manual v1.1x Edition D (2).pdf

3.29MB





출처 : 노드 공식홈페이지
