[Nord] Stage 1 노드 스테이지 1 신디사이저 Manual (영문 매뉴얼)



Nord Stage 1

(2005)



노드 스테이지 1

신디사이저 매뉴얼



Nord stage 1 신디사이저 스펙







General

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel

• 21 x 6 Program Locations
• 2 Live Buffers

• 2 Individual Panel Setups
• 3 Morph sources

Organ section

• B3 Tone Wheel Organ-, Vox Continental- and Farfisa-models with full polyphony
• 9 Digitally Controlled Drawbars
• Percussion Controls

• Vibrato / Chorus Control
• 2-Part Multitimbral (2 manuals)

Piano section

• 2 Acoustic Grands
• 2 Upright Pianos
• 3 Electric Pianos (Mk I, II, V)
• Wurlitzer A200 Electric Piano

• Clavinet D6
• CP-80 Electric Grand
• 40-60 Voices Polyphony

• 4 Selectable Velocity Curves
• Clavinet EQ Controls
• 2-Part Multitimbral

Synth Section

• Analog synthesis: 10 Modeling Waveforms - including Dual Saw, Hard Sync and PWM
• FM synthesis: 2 & 3 Operator FM Synthesis
• Wavetables synthesis: 32 waveforms
• 16 Voices Polyphony

• Unison Control - with no reduction in polyphony
• Timbre Controls
• Amplitude Envelope
• Modulation Envelope

• 12/24 dB LowPass Filter with Resonance
• 300 Memory Locations, 3 Categories
• 2-Band Equalizer
• 2-Part Multitimbral

Common parameters

• Level Control
• Zone (split assignment) Control

Effects

Instrument effects

• Unit One: Ring Modulator, Tremolo, Pan, Wah 1, Wah 2, AutoWah
• Unit Two: 2 Flangers, 2 Phasers, 2 Choruses Delay - includes Ping Pong and Tap-Tempo Function
• Amplifier/Speaker Simulation: 3 types of Speaker simulations, 3-band Equalizer and Overdrive
• Rotary Speaker: selectable Speed and Overdrive

Master Effects

• Amplifier/Speaker Simulation: 3 types of Speaker simulations, 3-band Equalizer and Overdrive
• Rotary Speaker: selectable Speed and Overdrive

Keyboard

• 88/76-models: Hammer Action Weighted Keys
• Compact-model: Medium Weighted Keys

• Aftertouch
• Supports 3 split zones with visual LED indicationx

Connections

• 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone Output - ¼", 6,35 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack.
• Rotor Pedal - ¼", 6,35 mm jack.

• Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.
• Control Pedal - ¼", 6,35 mm TRS stereo jack.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors

• USB - type B connector
• IEC320 C7 power connector

Dimensions

• Nord Stage 88:
  1297 mm (51"), 121 mm (4.5"), 334 mm (13")
• Nord Stage 76:
  1132 mm (45"), 121 mm (4.5"), 334 mm (13")
• Nord Stage Compact:
  1111 mm (44"), 102 mm (4"), 297 mm (12")

Weight

• Nord Stage 88: 18,5 kg (41lb)
• Nord Stage 76: 16,5 kg (36lb)
• Nord Stage Compact: 9,7 kg (21lb)

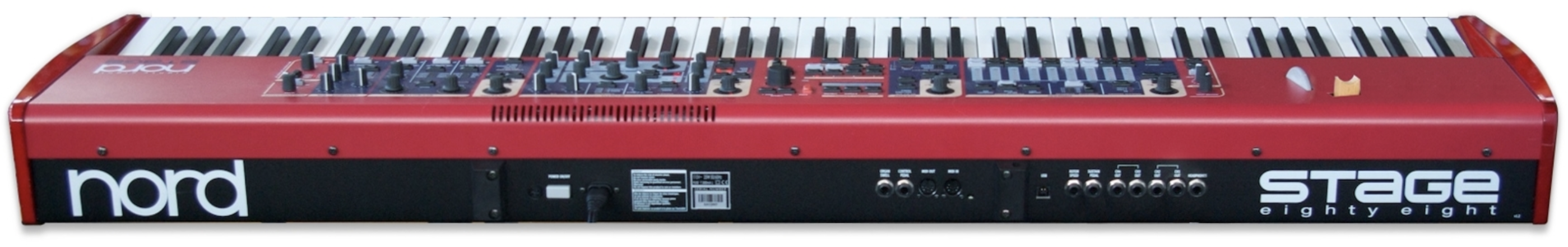

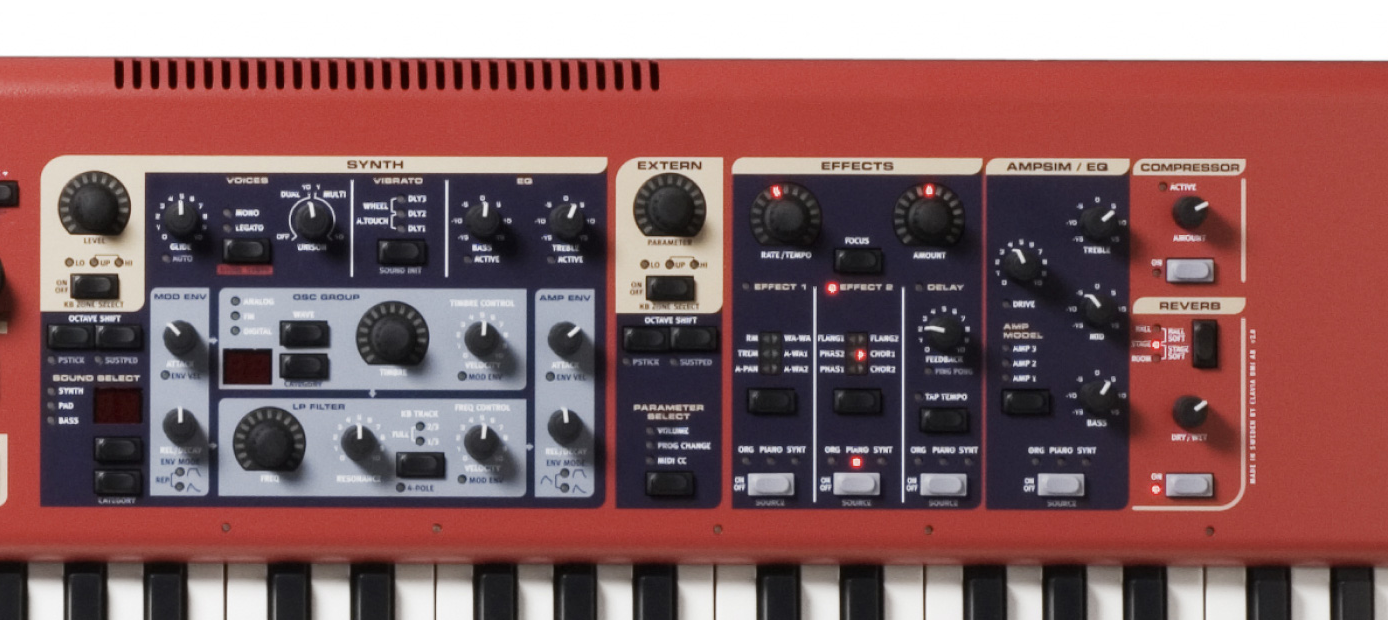

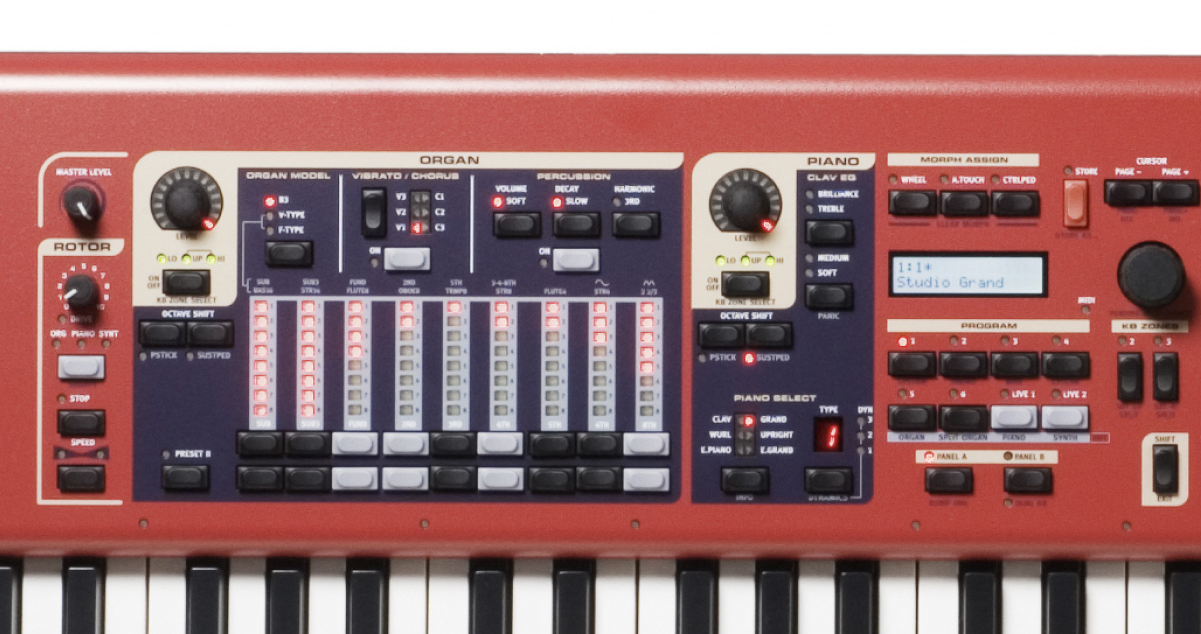

Nord stage 1 신디사이저 상세이미지

























































Nord stage 1 신디사이저 매뉴얼







Nord Stage EX English User Manual v6.x Edition 6.0.pdf

3.64MB





원래 Stage Classic 매뉴얼에는 추가된 사운드 매니저 기능이 포함되지 않았으므로,

EX 매뉴얼로 참고 부탁드립니다





출처 : 노드 공식홈페이지
