[Kurzweil] 커즈와일 PC2X 신디사이저 Manual (한글 매뉴얼)


2001년 출시 이후 많은 사랑을 받았던 스테이지 피아노

Performance Controller

참가로 'X'는 88 건반에 붙음

PC88 > PC2 > PC1>PC3 이렇게 모델명이 꼬여있던 기억이...:)


아직도 가끔은 현역으로 활동하는 모습을 볼 수 있는
인기 받았던 명기입니다.



Kurzweil PC2X 스펙 (출처 : 커즈와일 공식 홈페이지)




Keyboard:	88-note, two-piece weighted keyboard with mono pressure.
Display:	2×20 character LCD w/ rear panel contrast knob
Polyphony:	64-voice, dynamically allocated (upgradeable to 128 with the Polyphony Expansion option).
Multitimbral:	16 parts (one per MIDI channel)
Factory Presets:	536 Internal programs (incl. Orchestral ROM set). Expandable to 668 via Classic Keys Expansion and optional GM Bank install.
Factory MIDI Setups:	32 factory programmed MIDI setups expandable to 96 via Expansion ROM Blocks. 128 user programmable MIDI setups, each with 4 independent zones, effects and arpeggiator settings.
General MIDI:	available with the Orchestral ROM expansion (included in all units sold in the USA).
KB3 Mode:	Kurzweil’s proprietary modeled tone wheel organ technology.
User Memory:	256 locations for User created preset programs (128 for regular programs and 128 for KB3 programs)
ROM Expansion Slots:	2
Effects:	Dual Processors (A & B) offering: 58 Reverbs, 6 Delays, 10 Choruses, 6 Flangers, 3 Phasors, 4 Shapers, 2 Enhancers, 8 Filtered Effects, 4 Distortions, 1 Mono>Stereo, 3 Wide Stereo, 4 Compressors, 2 Panners, 7 Rotarys, Stereo Tremolo, and 44 combination effects chains utilizing Kurzweil1s unique Laserverb
Effects Routing:	All 16 MIDI channels can send to A and to B in any amount. Also there is a global send from A to B for serial effects chaining.
User Controllable EQ:	Global 3-Band
MIDI:	In, Out, Thru (hardware switchable to copy of MIDI Out).
Controllers:	Pitch wheel, modulation wheel, 4 front panel sliders, 5 front panel switches (momentary or toggle, software selectable), 2 continuous control pedal inputs, 3 footswitch inputs, mono pressure, breath controller input, Super Ribbon input.
Arpeggiator:	Full-featured MIDI note arpeggiator with multiple latch modes, selectable play order, velocity, duration, tempo, and sync functions.
Outputs:	Two 1/4″ balanced TRS analog (24-bit DACs), RCA digital w/ selectable format (AES/EBU, S/P-DIF), bit width (16, 18, 20, 24), and dithering.
FREE OS Updates:	Flash ROM upgradeable (via system exclusive dumps).
PC2X Specifications
Height:	(4.31″) (10.95 cm)
Depth:	(14.02″) (35.60 cm)
Length:	(54.31″) (137.95 cm)
Weight:	(50 lb.) (23 kg)
Power:	9.0VDC / 2.0A external supply

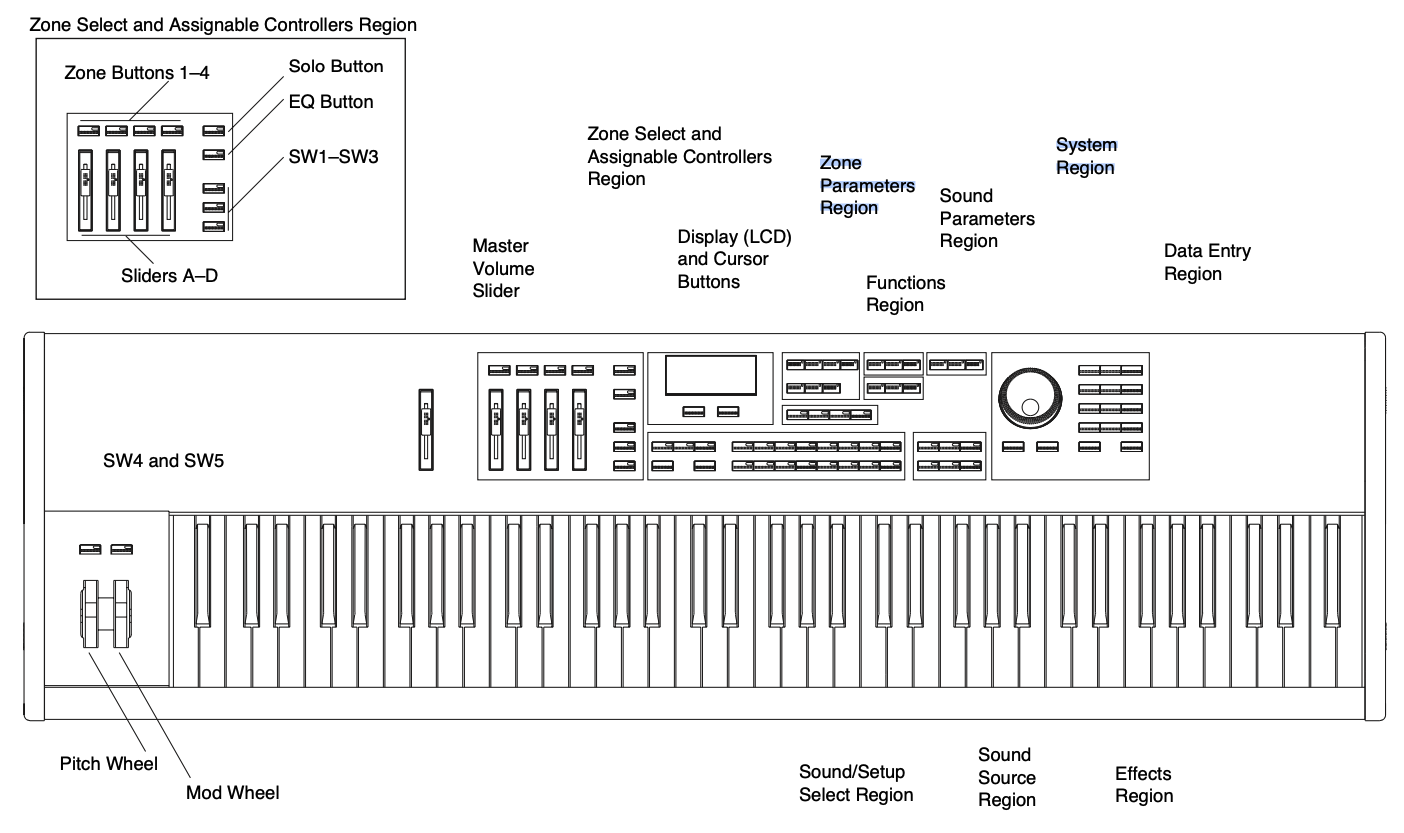

Kurzweil PC2X 상세이미지









































Kurzweil PC2X 한글 매뉴얼 (출처 : HDC 영창)





PC2X 메뉴얼(전편).pdf

10.86MB





PC2X 메뉴얼(후편).pdf

8.41MB




---


더욱 많은 정보는 커즈와일 공홈에서 확인 가능합니다.
