[Nord] Electro 5 일렉트로 5 신디사이저 Manual (영문 매뉴얼)







Nord Electo 5

(2015)



노드 일렉트로 5

신디사이저 매뉴얼









Nord Electro 5 신디사이저 스펙







Global features

Nord Electro 5D 61: 61-key (5 octaves, C-C) Velocity sensitive Semi Weighted Waterfall keyboard

Nord Electro 5D 73: 73-key (6 octaves, E-E) Velocity sensitive Semi Weighted Waterfall keyboard

Nord Electro 5 HP: 73-key (6 octaves, E-E) Velocity sensitive Hammer Action Portable keyboard



Performance features

• Bi-timbral sound generation: Use two sound engines simultaneously (Organ + Organ, Organ + Piano, Organ + Sample Synth or Piano + Sample Synth) set up as a layer or a split
• 6 Keyboard Split points (C3-F5)
• 3 Live Slots

• Set List mode: Group sets of up to four Programs into Songs, and organize these within a Set List
• MIDI features for individual control of Part Lower and Part Upper, and for controlling external sound modules from the upper part of a split

• MIDI Upper Split feature: Control the entire range of sound engine selected for Part Upper from an external MIDI keyboard, while utilizing the keyboard of the Nord Electro 5 for the selected sound of Part Lower



Piano section

• 1 GB memory dedicated to the Nord Piano Library
• The Piano Section has 6 categories - Grand, Upright, EPiano 1 (tine), EPiano 2 (reed) Clavinet and Harpsichord.
• Each category can contain several different models.

• All pianos can be replaced using the Nord Sound Manager application
• Advanced String Resonance-control (Gen 2)
• Long Release

• 4 Dynamic Curves
• Stereo pianos and samples can be played back in mono
• 40-60 Voices polyphony for Piano Library sounds.



Sample Synth Section

• 256 MB memory dedicated to the Nord Sample Library
• All samples can be replaced using the Nord Sound Manager application
• The Sample Synth section comes shipped with a selection of one hundred samples from the Nord Sample Library

• Attack and Decay/Release control
• Dynamics control (Filter/Velocity)

• 15 Voice polyphony for Sample Library sounds.



Organ section

• C2D B3 Tonewheel, B3+Bass, Vox, Farfisa and Principal Pipe organ model
• User adjustable percussion levels, percussion decays and key click level
• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)

• 4 Tonewheel modes: select the level of "vintage" desired
• Mount for Half-Moon Switch on Electro 5D 61/73

• Nord Electro 5D 61/73: 9 Physical drawbars
• Nord Electro 5 HP: Digital LED drawbars



Effect Section



Effect 1

• Pan, Tremolo, Wah and Ring Modulator
• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
• Two selectable depths for each effect



Amp Simulations

• Comp/Amp - three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive
• Drive/Compression amount controlled with the Drive knob
• Rotary speed controls - Slow, Fast and Stopped
• Close or Normal microphone placement for 122 Rotary Speaker simulation
• User adjustable rotary treble and bass rotor speeds and acceleration rates
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation



Master Effects

• Dedicated Reverb with five algorithms - Room, Stage Soft, Stage, Hall Soft, Hall and Dry/Wet control
• Dedicated Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong



Connections

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.

• 1 Sustain pedal input - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal

• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector - for transferring sounds and USB MIDI
• IEC C14 power connector



Dimensions

• Nord Electro 5D 61: 900 mm (35.4") x 97 mm (3.8") x 296 mm (11.7")
• Nord Electro 5D 73: 1066 mm (42") x 97 mm (3.8") x  296 mm (11.7")
• Nord Electro 5 HP: 1074 mm (42.3") x 121 mm (4.8") x 344 mm (13.5")



Weight

• Nord Electro 5D 61: 8.1 kg (17.85 lbs)
• Nord Electro 5D 73: 9.2 kg (20.28 lbs)
• Nord Electro 5 HP: 11.4 kg (25.13 lbs)



Included Accessories

• User Manual
• Power cord

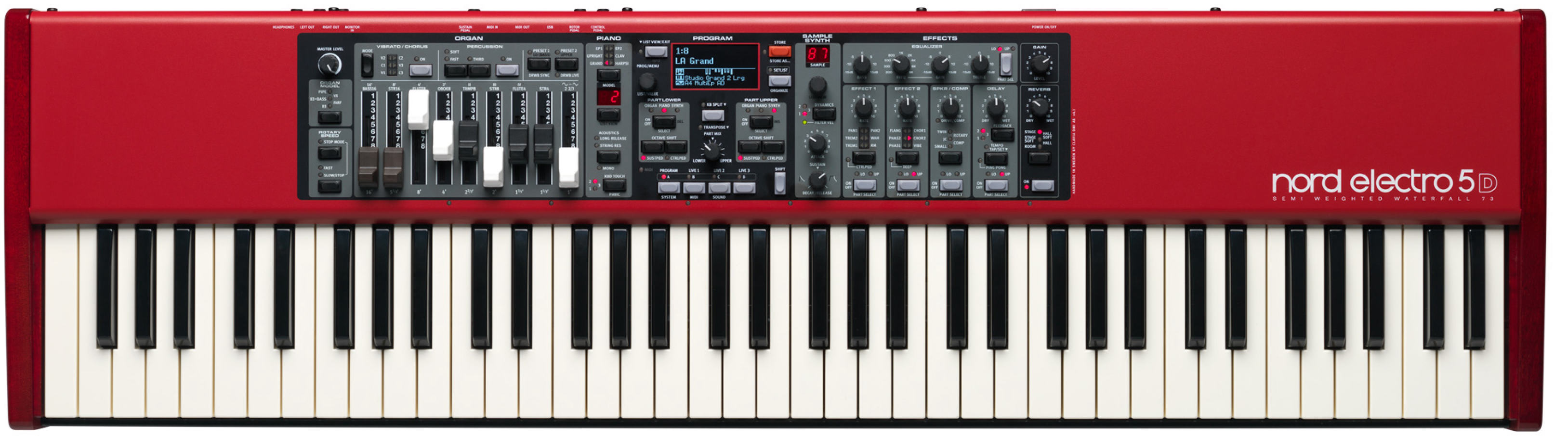

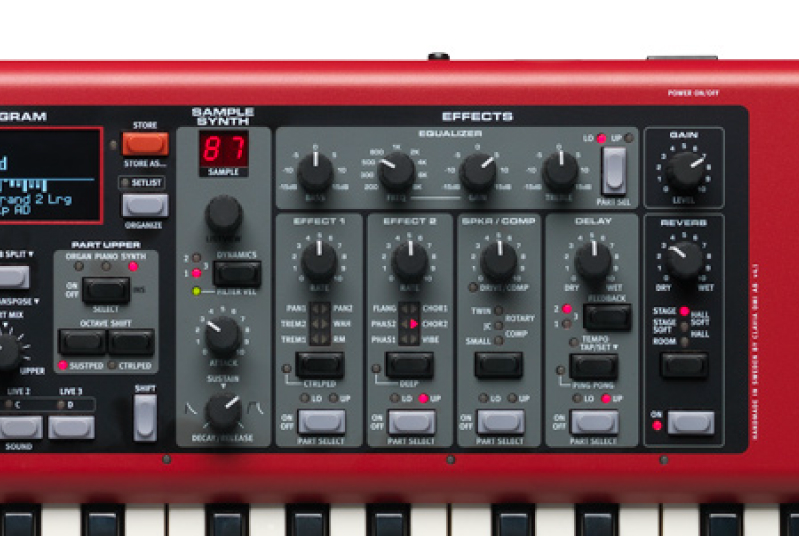

Nord Electro 5 신디사이저 상세이미지





















































































Nord Electro 5 신디사이저 매뉴얼









Nord Electro 5 English User Manual v1.x Edition E.pdf

7.67MB









출처 : 노드 공식 홈페이지
