[Nord] Piano 6 노드 피아노 6 Manual (영문 매뉴얼)







Nord Piano6

(2025)



2025년 4월 국내 입고 되었습니다.















노드 피아노 6 73 NORD PIANO6 73key : 굿피아노



노드 피아노 6 88 NORD PIANO6 88 key : 굿피아노









 노드 피아노 6 영문 매뉴얼







노드 Piano 6 스펙







General



• Dual Piano and Dual Synth Layers
• OLED Display
• Seamless Transitions
• Split Point Crossfades
• 16 banks with 36 programs - 576 locations
• Organize for programs

• Organize for programs
• Live Mode - 6 Live programs
• Global Transpose: +/- 6 semitones
• Global Fine-tune: +/- 50 Cents
• Program Transpose: +/- 6 semitones

• 88 or 73-note Triple Sensor keybed with grand weighted action
• Selectable split point with LED indication (9 locations)
• Nord Triple Pedal 2 included
• MIDI over USB



Piano Section



• 2 independent Layers
• 2 GB memory for Piano sounds
• All sounds can be replaced using Nord Sound Manager (Mac/Win)
• 120 Voice Polyphony
• Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc

• 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
• Piano Timbre controls with custom settings for Electric Pianos and Clavinet
• String Resonance for acoustic Grand Pianos and Uprights

• Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Single Pedal 2 on acoustic and electric pianos
• Dynamic Compression
• Unison functionality
•

Sample Synth Section



• 2 independent Layers
• 1 GB memory for Nord Sample Library
• Amp envelope with Attack, Decay/Sustain and Release controls

• Vibrato with Rate/Amount, Delay, button or pedal
• Unison with 3 amounts
• Mono, Legato and Glide

• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)



Effects Section



• Mod 1: Tremolo, Pan 1 (Soft), Pan 2 (Hard), Spin, Wah, Ring Modulator (controllable via optional pedal)
• Mod 2: Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2, Vibe, Spin. Stereo/Mono options for each effect
• Equalizer: Per Layer or Global, 3-band with sweepable mid (200 Hz - 8 kHz)

• Amp: Twin, JC and Small. Each with Alternate Tone option
• Compressor: Per Layer or Global, Amount control
• Delay: Per Layer or Global, Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong with 3 amount options, Tap-Tempo, Feedback Filter (HP/LP/BP), Flam

• Reverb: Global Reverb with Dry Wet amount optionally controllable per Layer. Spring, Booth, Room, Stage, Hall and Cathedral Reverb types, each with optional Pre-Delay, Chorale and Bright/Dark modes.
• Group mode for Effects



Connections

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Sustain Pedal input - ¼", 6,35 mm jack. Compatible with Nord Triple Pedal or a momentary pedal

• Triple Pedal - 5 pin DIN connector. Use the included Nord Triple Pedal 2
• 1 Control/Volume Pedal input - ¼", 6,35 mm TRS stereo jack.
• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB MIDI
• IEC C14 power connector



Dimensions

• Nord Piano 6 88:
  1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")

• Nord Piano 6 73:
  1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")
•

Weight

• Nord Piano 6 88:
  19.2 kg (42.3 lbs)

• Nord Piano 6 73:
  16.2 kg (35.7 lbs)
•

Included Accessories

• Nord Triple Pedal 2
• User Manual
• Power cord



Optional Accessories

• Nord Piano Monitor
• Nord Single Pedal 2 (SP-2)

• Nord Keyboard Stand
• Nord Soft Case

• Nord Music Stand
• Nord Wood Music Stand
• Dust Cover

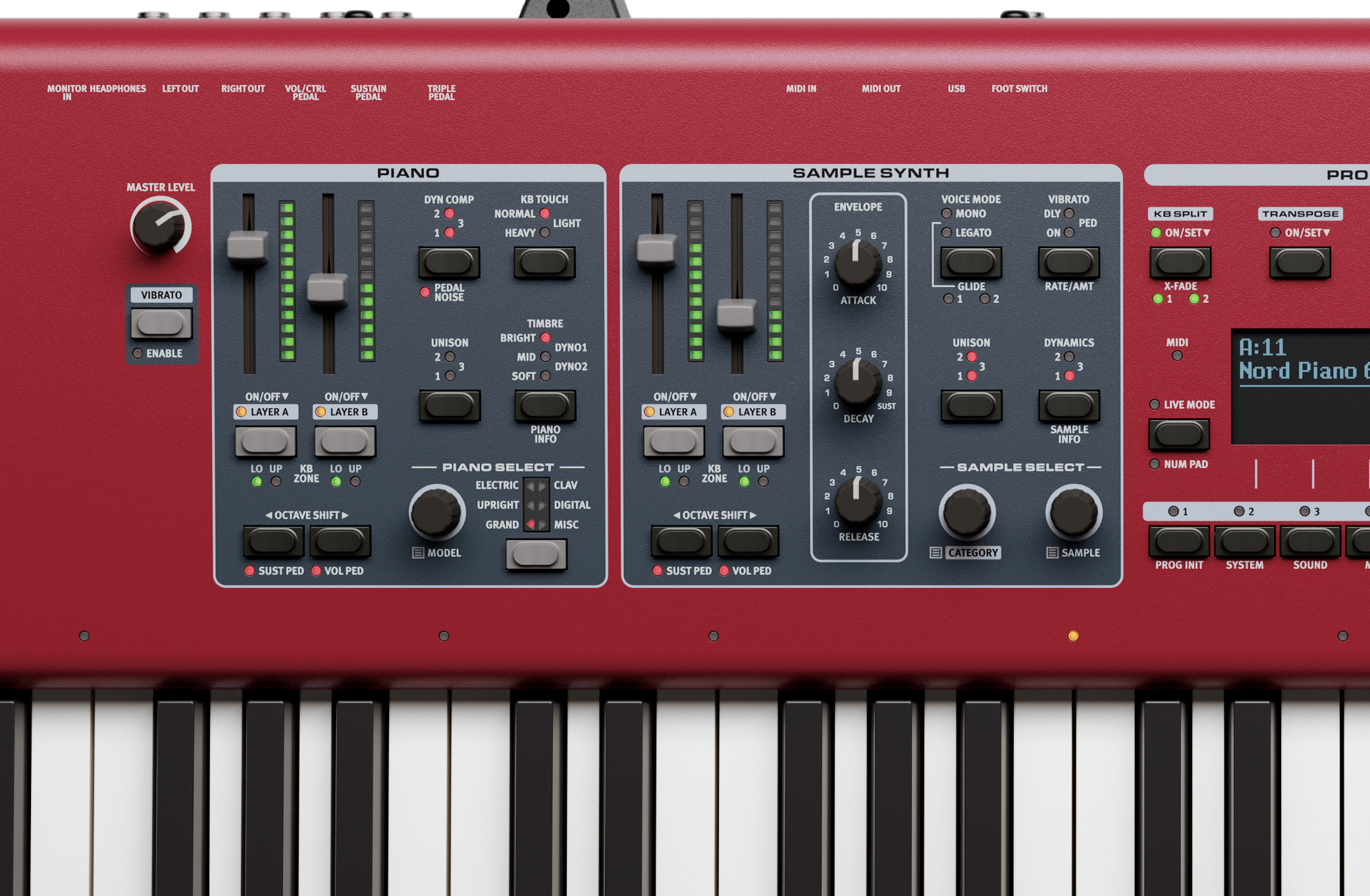

노드 Piano 6 상세이미지



































































노드 piano 6 매뉴얼









Nord Piano 6 User Manual v1.1x Edition C (1).pdf

13.43MB





출처 : 노드 공식 홈페이지
