Nord Piano 3

(2017)



노드 피아노 3 매뉴얼







Nord piano 3 스펙







Global features



• OLED Display
• 4 banks with 50 programs - 200 locations
• Organize functionality for programs
• Live Mode - 5 Live programs
• Global Transpose: +/- 6 semitones

• Program Transpose: +/- 6 semitones
• Fine-tune: +/- 50 Cents
• Kbd Touch: 3 velocity response curves
• Triple Sensor keybed with Virtual Hammer Action Technology
• Split functionality with selectable split point and LED indication

• Layer functionality
• Mono Output option
• Dynamic Sustain Pedal action with the included Nord Triple Pedal
• USB-MIDI
• Free OS updates



Piano section



• 6 types - Grand, Upright, Electric Piano 1, Electric Piano 2, Clavinet and Harpsichord.
• Each category can contain up to 9 different models.
• Organize functionality for piano sounds

• 40/60 Voices Polyphony (stereo/mono pianos)
• Advanced String Resonance (Generation 2) - adjustable amount
• Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord

• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount
• Octave Transpose: -1/+1





Sample Synth Section



• 15 Voices Polyphony
• Organize functionality for samples
• Amp envelope with Attack and Decay/Release

• Selectable velocity sensitive low pass filter and dynamic range
• Octave Transpose: -1/+3

• Sustenuto pedal can be set as sustain or latch pedal for the Sample Synth section.
• Volume controllable with Volume Pedal (not included)



Memory



• Approx. 1 GB dedicated to the Nord Piano Library

• Approx. 256 MB dedicated to the Nord Sample Library 2.0



Effect Section

Effect 1

• Pan, Tremolo, Wah and Ring Modulator
• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
• Two selectable depths for each effect

Amp Simulations

• Comp/Amp - three amp/speaker simulations, Tube Overdrive
• Drive/Compression amount controlled with the Drive knob
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Master Effects

• Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
• Dedicated Delay Effect - Rate, Amount and Tap-tempo functio

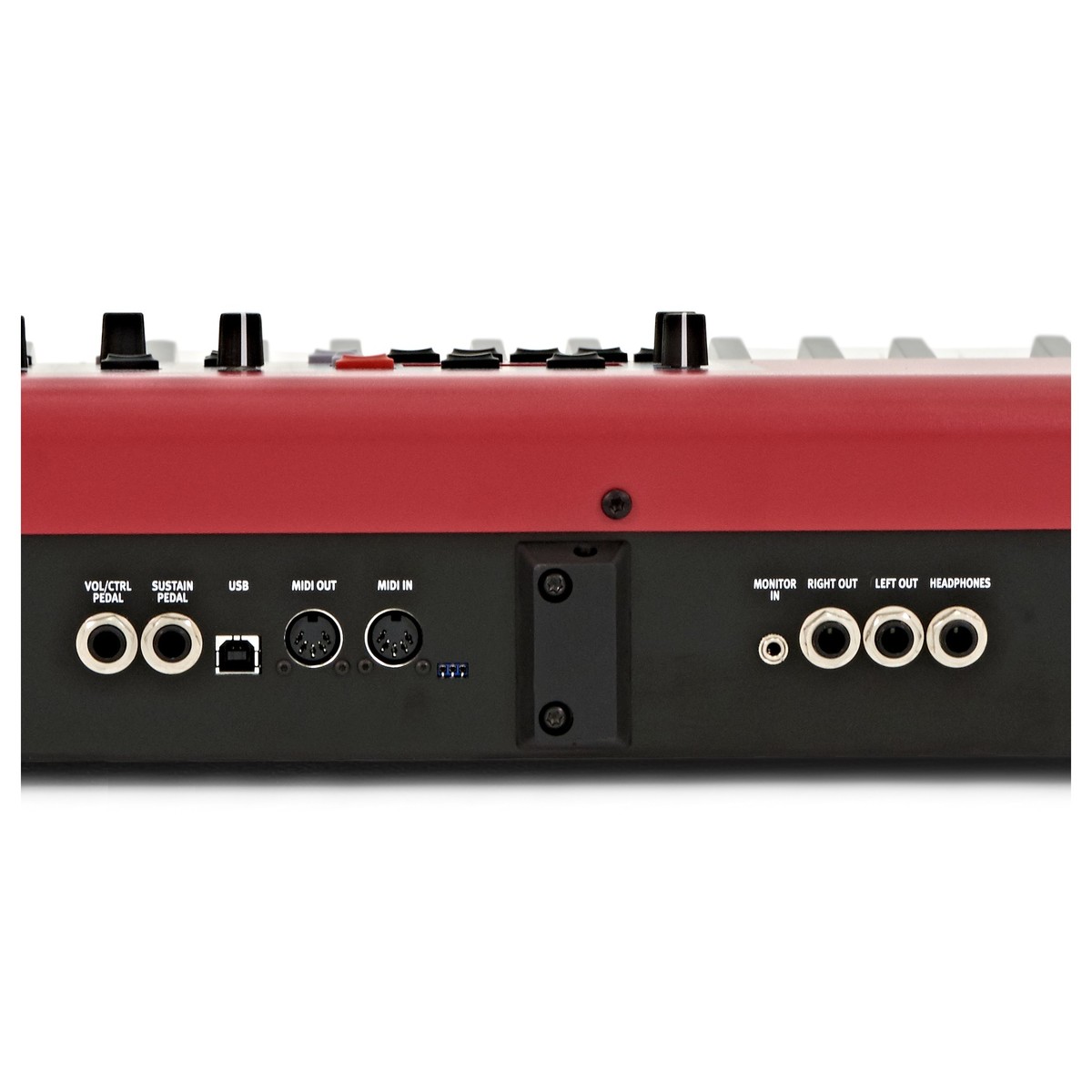

Connections

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Piano pedal input - ¼", 6,35 mm jack.

• 1 Volume Pedal input - ¼", 6,35 mm TRS stereo jack.
• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB-MIDI
• IEC C14 power connector

Included Accessories

• Nord Triple Pedal
• User Manual
• Power cord

Dimensions

1287 mm (50.7"), 121 mm (4.8"), 340 mm (13.4")



Weight

18,2 kg (40.3 lbs)





Nord piano 3 상세이미지

































Nord piano 3 매뉴얼







Nord Piano 3 English User Manual v1x-Edition-D.pdf

6.05MB
