[Nord] Stage 2 노드 스테이지 2 신디사이저 Manual (영문 매뉴얼)



Nord Stage 2

(2011)



 노드 스테이지 2

신디사이저 매뉴얼







Nord stage 2 신디사이저 스펙





General

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel
• 400 Programs - 4 Banks with 20 Pages each. Each Page has 5 Program locations
• Program Categories

• Program Sort Modes - numerical, alphabetical or by category
• 5 Live Buffers
• 2 Individual Slot Setups
• 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
• Global Mono output

• Programmable Transpose +/- 6 semitones
• Master Clock functionality with manual, external and tap-tempo rate control
• Internal and MIDI clock source
• MIDI over USB functionality

Organ section

• B3 Tone wheel Organ, Vox Continental and Farfisa models with full polyphony
• 9 digitally controlled Drawbars

• Percussion controls
• Vibrato / Chorus control

• Two Drawbar settings per program
• 2-Part Multitimbral (2 manuals)

Piano section

• Approx. 500 Megabyte memory for Piano sounds
• Acoustic Grand Pianos
• Upright Pianos
• Electric Pianos
• Wurlitzer A200 Electric Piano
• Clavinet D6

• Harpsichords
• Electric Grand Pianos incl. CP-80
• 40-60 Voices Polyphony
• 4 Selectable Velocity Curves
• String Resonance (Generation 2) on acoustic Grand Pianos and Uprights

• Clavinet EQ controls
• Selectable Piano Release
• Pedal Noise (when used with Nord Triple Pedal )
• Slot Detune functionality
• 2-Part Multitimbral

Synth Section

• Sample Playback synthesis: approx. 380 Megabytes of sample memory, up to 999 Sample Instruments.
• Analog synthesis: Multiple waveforms - including Dual Saw, Hard Sync and PWM
• FM synthesis: 2 & 3 Operator FM synthesis
• Wavetables synthesis: 62 waveforms
• 18 Voices polyphony

• Unison control - with no reduction in polyphony
• Amplitude envelope
• Modulation envelope
• 12 & 24 dB Low Pass, High Pass, Band Pass and Notch Filter with Resonance
• LFO with 4 waveforms (square, triangle, ramp and sample & hold)

• 300 Patch memory locations
• Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
• LFO and Arpeggiator synchronizable to Master Clock
• 2-Part Multitimbral

Global parameters

• Level control
• Zone (split assignment) control

Effect Section

• Effect 1: Ring Modulator, Tremolo, Pan, Wah, AutoWah 1, Autowah 2
• Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
• Delay - with Ping Pong (stereo taps) and Tap-Tempo
• 3 types of Speaker simulations, JC, Twin and Small

• Tube amp simulation with adjustable overdrive
• 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz

• Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
• Effect rates/tempo can be synchronized to the Master Clock

Keyboard

• HA88/HA76-models: Hammer Action Weighted keyboards. Range: HA88: A-C, HA76: E-G
• SW73-model: 73-note Semi Weighted Waterfall keyboard. Range: F-F

• Aftertouch
• Supports 3 split zones with visual LED indication

Connections

• 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone output - ¼", 6,35 mm stereo jack
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• Sustain input compatible with Nord Triple Pedal (sold separately)
• Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal

• Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.

• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector
• IEC320 C7 power connector

Dimensions

• Nord Stage 2 HA88: 1287 mm (50.7"), 118 mm (4.7"), 334 mm (13")
• Nord Stage 2 HA76: 1121 mm (44"), 118 mm (4.7"), 334 mm (13")
• Nord Stage 2 SW73: 1105 mm (43,5"), 106 mm (4"), 302 mm (12")

Weight

• Nord Stage 2 HA88: 18,5 kg (41lb)
• Nord Stage 2 HA76: 16,5 kg (36lb)
• Nord Stage 2 SW73: 9,7 kg (21lb)

Included Accessories

• Sustain pedal (HA88 and HA76 only)
• Dust cover (HA88 and HA76 only)
• User Manual
• Power cord

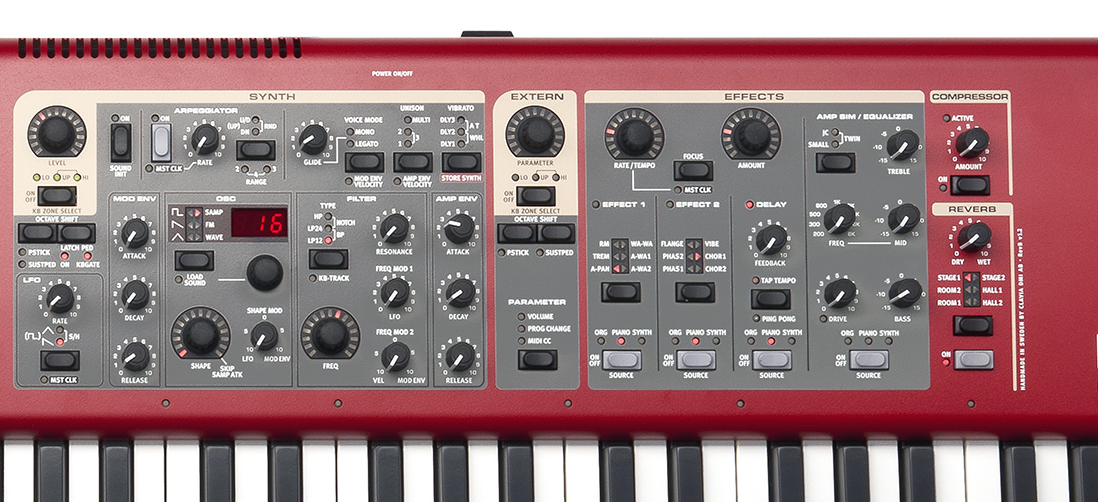

Nord stage 2 신디사이저 상세이미지

























































Nord stage 2 신디사이저 매뉴얼









Nord Stage 2 English User Manual v1.7x Edition J.pdf

13.90MB







출처: 노드 공식 홈페이지
