[Kurzweil] 커즈와일 SP4-8 Manual (한글 매뉴얼)

커즈와일 스테이지피아노 SP4-8

2010, 2011년 정도 출시가 되었던 듯합니다.

76 건반의 SP4-7
88 건반의 SP4-8
이렇게 두 종류가 있었고

모델명처럼 Stage Piano의 용도로
당시 가성비가 좋아 큰 인기를 끌었던 모델

FATAR TP/10LR 키베드를 탑재했었고
128개의 음색이 내장되어 있었습니다.

현재는 SP7 시리즈까지 나와있으니 좀 연식은 느껴지시지요?



Kurzweil SP4-8 스펙 (출처:커즈와일 공식 홈페이지)







All specifications subject to change without notice.

Keyboard:	88-note hammer-weighted action with velocity sensitive adjustable keys (Fatar TP/100LR)
Display:	16 character LCD w/ front-panel contrast adjust
Polyphony:	64 Voice Polyphony, dynamically allocated
Multitimbral:	16 parts (one per MIDI channel)
Quick Split/Layer:	Easy access with adjustable relative volume (up to 4 zones)
Factory Presets:	128 (taken from the acclaimed PC3 sound set, including select KB3 organs and KVA synths)
User Presets:	64
Factory MIDI Setups:	64
User MIDI Setups:	64 (with 4 programmable zones for splits and layers)
Effects:	Dozens of complex effect chains taken from the PC3, with everything from concert hall reverbs to amplifier simulations and rotary effects
Controllers:	Pitch wheel, modulation wheel, 1 front panel knob, 1 switch-pedal input (supports optional, dual-pedal), 1 continuous control pedal input
Analog Outputs:	Two 1/4″ balanced TRS analog (24-bit DACs)
Headphones:	1 rear panel 1/4″ headphone output
MIDI:	In, Out
USB:	Complete MIDI functionality over USB User program/setup file transfer to/from PC/Mac Operating System updates from PC/Mac
FREE OS Updates:	OS updates over USB
FREE Sounds:	The SP4 can also load programs created on our PC3 and PC3LE series keyboards (*within the limits of the SP4’s DSP resources). Additional sounds are also available for download on our website (loaded over USB)
Included Accessories:	Power cable, Switch pedal, USB cable, (4) self adhesive feet
Height:	(5.5″) (13.97cm) – rear (3.25″) (8.26) – front
Depth:	(13″) (33.02cm)
Length:	(55.13″) (140.02cm)
Weight:	(39 lb.) (17.7 kg)
Power:	External 15VDC 1.0A power supply

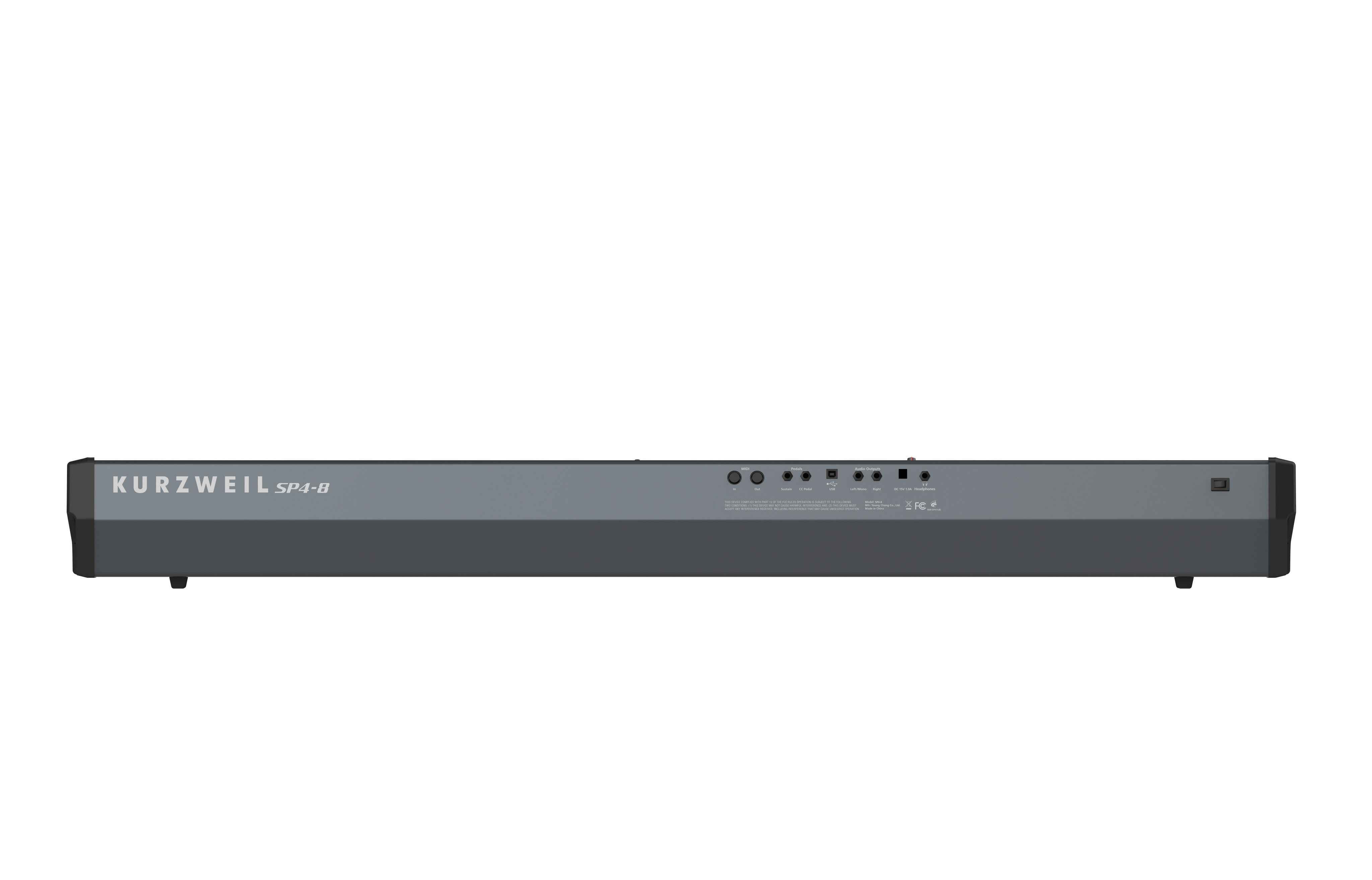

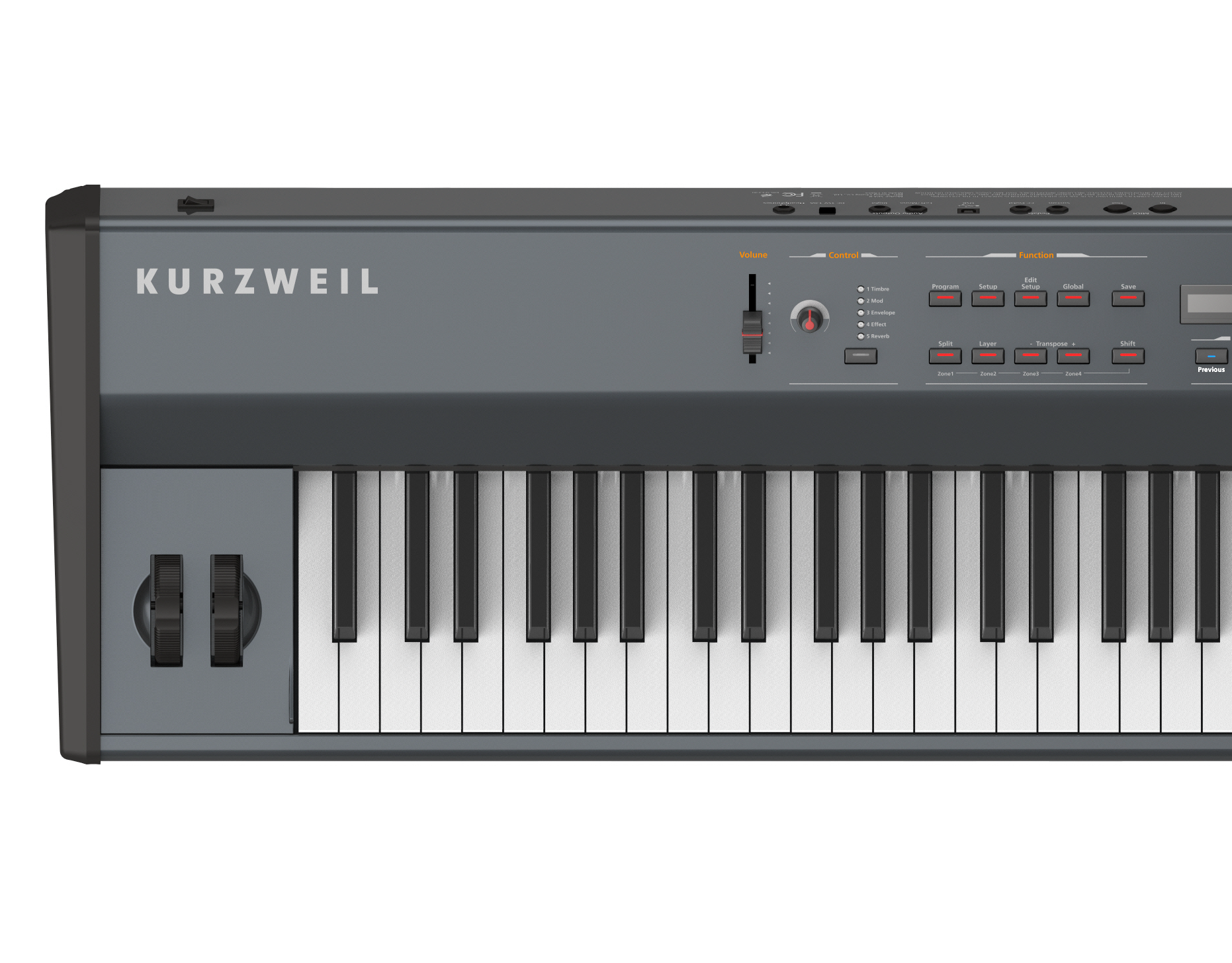

Kurzweil SP4-8 상세이미지 (출처 : 커즈와일 공식 홈페이지)





디자인도 군더더기 없이 깔끔했고요




USB 포트도 있었네요

U






Kurzweil SP4-8 한글매뉴얼





1.pdf

4.54MB

2.pdf

4.36MB

3.pdf

3.17MB




출처 : HDC 영창

---
